Sunshade PVC

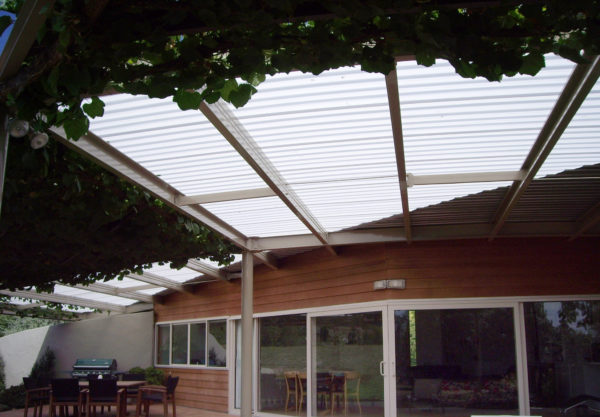

Sunshade PVC roofing sheets are a corrugated translucent roofing product designed for weather protection and enhancement of your outdoor living area. These sheets are sold in packs of 10.
Technical specifications

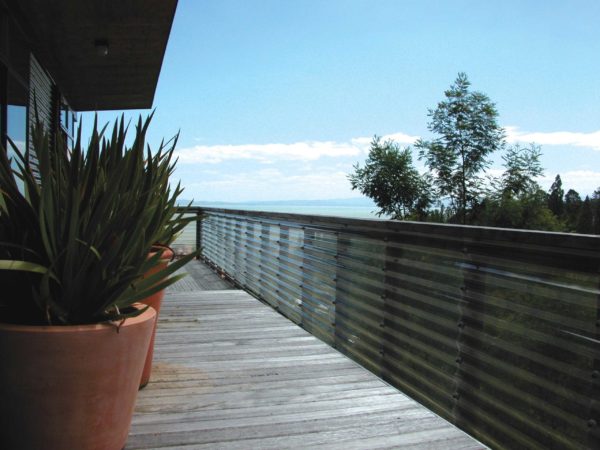

Sunshade PVC roofing can also be installed for use in a variety of roofing, cladding and fencing situations. Sunshade PVC roofing is available in Opal (610mm) frost tint and Clear (760mm) that provides shade from sun, rain and wind, can easily be cut to measure and is available in four handy sheet?lengths.
1800mm, 2400mm, 3000mm and 3600mm
Storage, Handling and Maintenance
Because sheets at the top of a stack will act as a magnifying?glass, it is essential stacked sheets are stored away from direct sunlight as heat build up will distort stacked sheets.
Sunshade is a low cost PVC roof sheeting product and as New Zealand experiences high levels of Ultra Violet light, in certain conditions some installations can reduce the useful life of the product.
Correct installation of Sunshade PVC begins with placing the sheets in position and pre-drilling of a 10mm oversized hole. This allows for sheet expansion and contraction and will enable the sheets to sit straight avoiding distortion from over tightening on the purlins.
Warranty Information
Sunshade Opal 690mm wide PVC sheets?do not carry any specific warranty and it is recommended these sheets are replaced after 3 years.
Sunshade Clear 760mm wide PVC sheets?do not carry any specific warranty and it is recommended these sheets are replaced after 3 years.
Accessories and?Fasteners
Alsynite Multipurpose 14g x 50mm & 26mm EPDM (Qty 60)
Alsynite Multipurpose 14g x 50mm & 26mm EPDM (Qty 500)
Alsynite Mighty – Tile 12g x 55mm & 26mm Washer (Qty 50)
Alsynite Mighty – Tile 12g x 55mm & 26mm Washer (Qty 250)
Alsynite Mighty – Tile 12g x 55mm & 26mm Washer (Qty 1000)
Timber fastener 12g x 55mm CL4 & 21mm Dome Washer (Qty25)
Timber fastener 12g x 55mm CL4 T17 & 26mm DeksEPDM (Qty 60)
Timber fastener 12g x 55mm CL4 T17 & 26mm DeksEPDM (Qty 200)
One Sho tTimber Fasteners 12g x 50mm CL4 (Qty 50)
One Sho tTimber Fasteners 12g x 50mm CL4 (Qty 250)
One Sho tTimber Fasteners 12g x 50mm CL4 (Qty 1000)
Foam Corrugate White 4 Pack .975mm
Noise Stop Tape 25mm x 3mm 25m Roll White
?
Product Brochure
Sunshade-Brochure-A4-WEB-May-15
Please note that we are a distributor and the product comes from Hamilton
Please allow 48hr for it to be delivered.
