Features

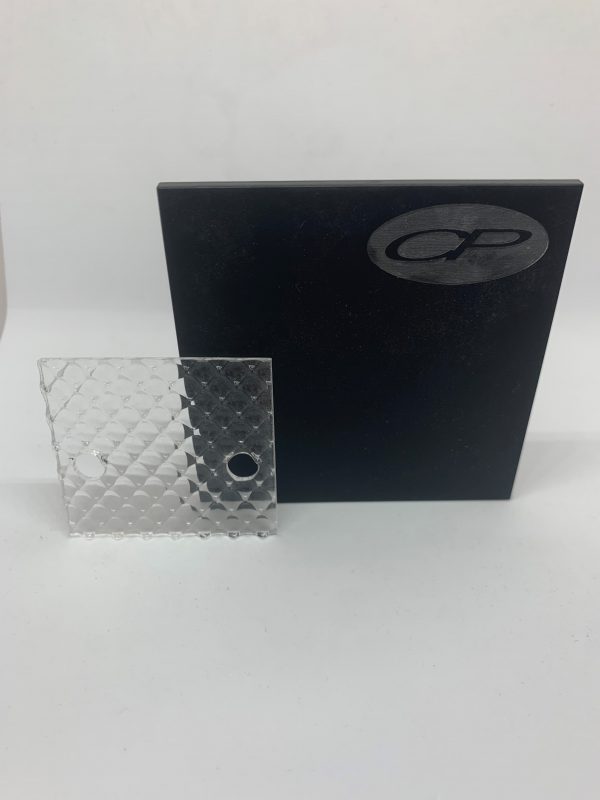

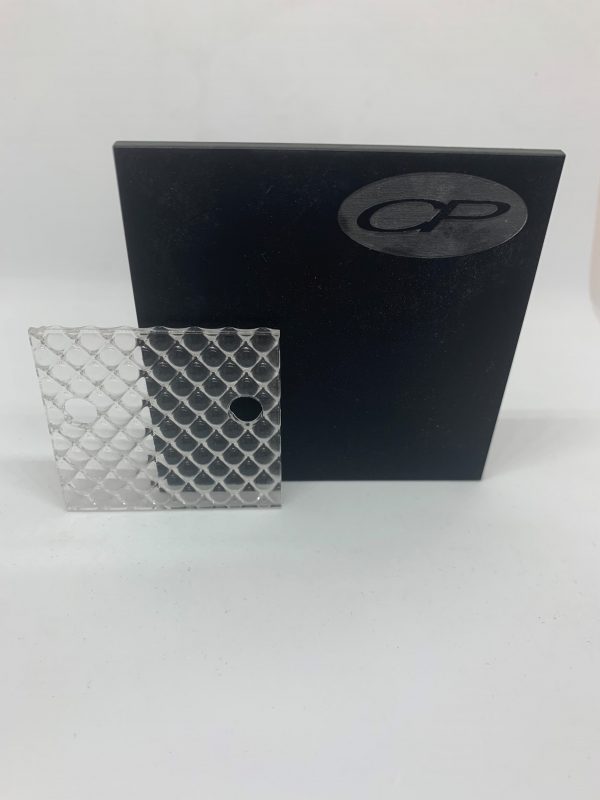

- Y12 prismatic pattern with 5mm diagonal female prisms
- Light output ratio of 74%
- Unified Glare Rating (UGR) of 22
- Available as standard sheets or cut to size
- Available in 2.5mm and 3mm thicknesses
- Translucent acrylic alternative to conventional diffuser products
Benefits
- Helps distribute light more evenly
- Provides brightness and glare control
- Helps conceal lamps and lighting components
- Suitable for applications requiring a practical light-diffusing panel
- Acrylic construction provides a lightweight alternative to glass-based solutions
Applications
Suitable for:
- Sky domes
- Illuminated ceilings
- General office lighting
- Natural lighting applications
- Retail areas
- Schools
- Clinical facilities
Size & Specifications
| Specification | Details |
|---|---|
| Material | Prismatic acrylic |
| Pattern | Y12, 5mm diagonal female prism |
| Thickness | 2.5mm or 3mm |
| Format | Standard sheets or cut to size |
| Light output ratio | 74% |
| Unified Glare Rating | 22 |
Custom cut-to-size options are available where required.
